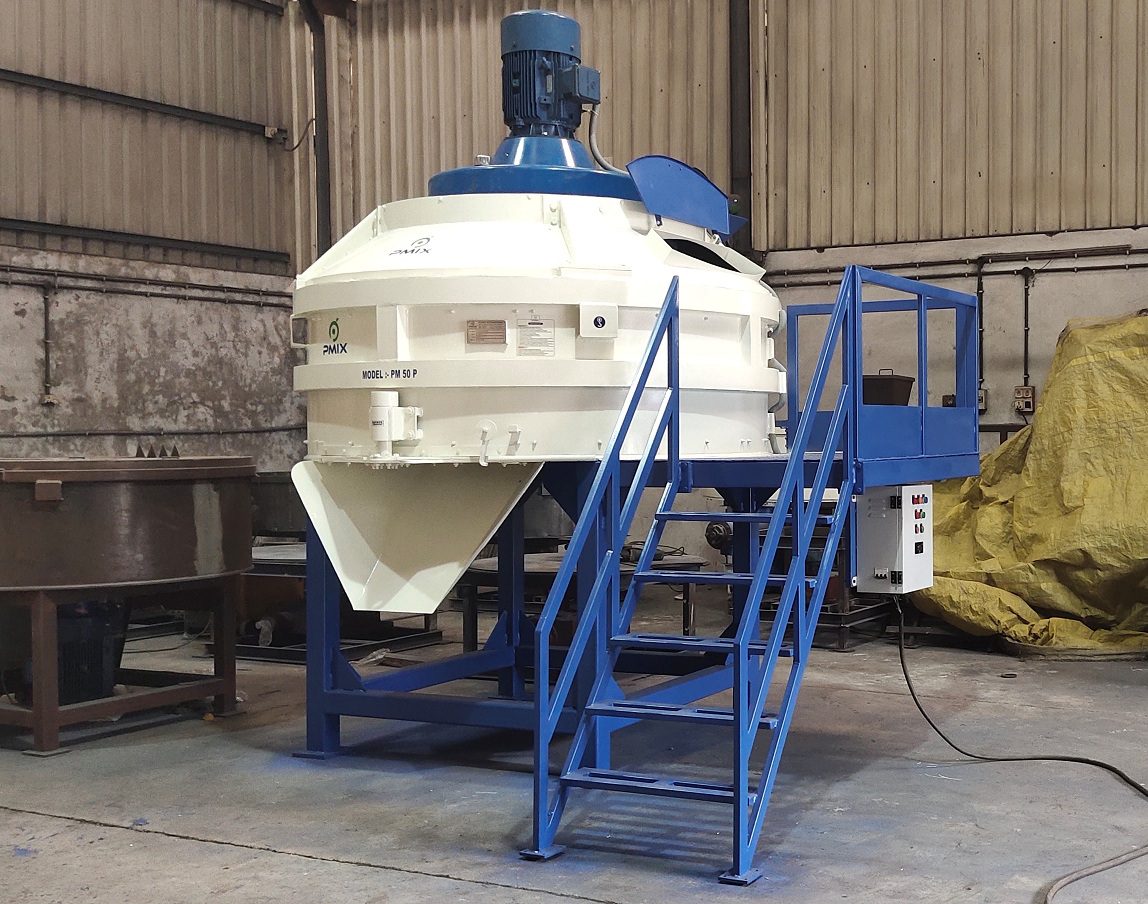

“P” Series

100.0

100 in stock

“P” series pan mixers are high-quality planetary concrete pan mixer models with heavy-duty planetary motion stirrer top motors for quick and homogeneous mixing in heavy duty material mixing applications. One of the best products that the reputable company PMIX sells is a concrete planetary mixer. Different models were created based on the demands of the customers. There is a wide range of planetary mixers available from PMIX that can be customized to meet your specific requirements. Check out the different model specifications.

P Series Models

  • PM 10 P
  • PM 15 P
  • PM 20 P
  • PM 33 P
  • PM 50 P
  • PM 87 P
  • PM 100 P
  • PM 120 P
  • PM 150 P



100 in stock

Contact us
Category:

Description





Standard Features

  • Direct drive
  • Plug & start
  • Lifting hook
  • Water spray bar
  • Top safety cover
  • Bolted liners provided
  • No foundation required
  • All parts interchangeable
  • Limit switch for top safety cover
  • Swiveling-type discharge with chute by hydraulic
  • Having a planetary motion stirrer for quick and homogenous mixing



Optional Features

  • VFD provided
  • Digital water meter
  • Material loading system
  • Material hopper with load cell



Technical Details

Model
Particular PM 10 P PM 15 P PM 20 P PM 33 P PM 50 P PM 87 P PM 100 P PM 120 P PM 150 P
Maximum Input (lit.) 150 200 300 500 750 1125 1500 1875 2250
Output Capacity (lit.) 100 150 200 330 500 875 1000 1500 1750
Maximum Load Capacity (kg.) 240 300 480 750 1200 1800 2400 3000 3600
Motor Power Input (kW/HP) 3 5 7.5/10 10/15 18.5/25 30/40 45/60 55/75 60/80
RPM of Slewing Body 17 17 13 13 12 12 10 10 10
RPM of Star Rotors 51 51 39 39 36 36 36 36 36
Number of Mixing Arm 3 3 3 3 3 3 3 6 6
Number of Scrapers 1 1 1 1 1 1 1 2 2
Hydraulic Power Pack Motor (KW) 0.5 1 1 2 2 3 5 5 5

Note

  • Can be customized mixer as per specific client needs
  • Capacity and Motor Power consider as per general material and can very as per application.
  • Due to continuous development in the design, specifications & dimensions are subject to change without prior notice
  • Ele. Power 50Hz, 3Phase



Brochure

Catalog of ‘P’ Series Pan Mixer
